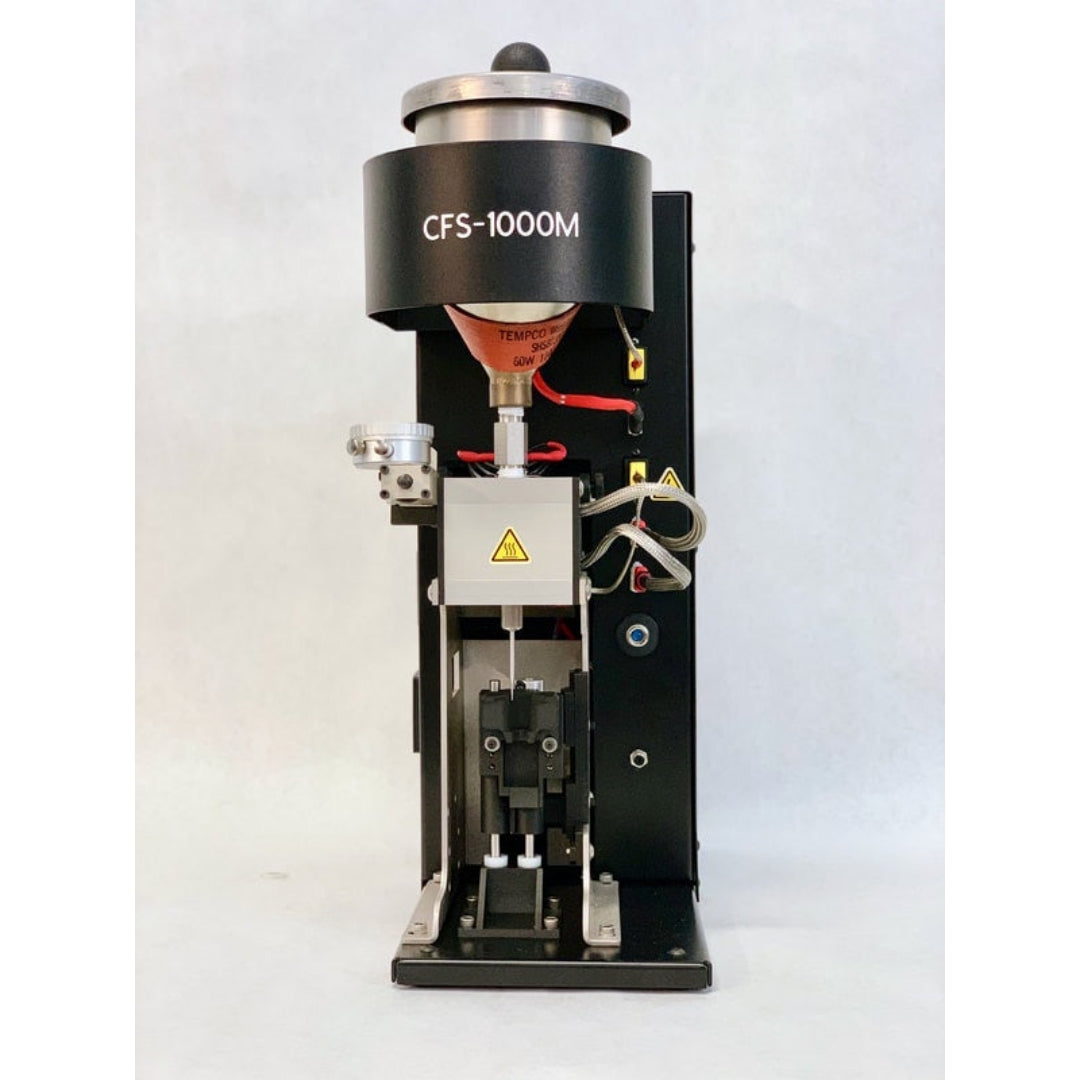

CFS-1000M Cartridge Filling System Specifications:

• Oils it can deliver: All Types, Distillate, CO2,

CBD, CO2 Infused, etc.

• Devices it can Fill: All “Top Fill” Types of

Cartridges, Pens, Disposables, Pods, Syringes, etc.

• Delivery Volume Range: Unlimited. Settable by Pump Head Angle Adjustment.

• Throughput Potential: Up to 1200 half-gram devices per hour.

• Vessel Volume 843 grams.

• Filling Accuracy: +/- .005 grams.

• Power Requirements: 110V AC 10A

• Change-Over time between Lots: As little as 2 Minutes.

• Change-Over time between Devices: As little as 5 Minutes.

• Cleanout: Ethanol

• Temperature Range of Vessel: Ambient to 80C

(Adjustable in 1 degree Increments).

• Pump Temperature Range: Pump Head is slave to the Vessel Temp Control System and is not independently adjustable.

• Needle Heater Temperature 65-80C (Nonadjustable)

• Shipping Weight 20 lbs.

Included with the CFS-1000M:

• 1 CFS-1000M Filling System

• 1 Power Cord

• 1 Port Seal Screwdriver

• Needle Nose Pliers

• SAE Allen Wrenches

• Priming Tube

• 1 Digital Scale .001 gr resolution.

• 1 Cartridge Nest for Scale

Available for Purchase:

• Spare Parts Kit

• Custom Nests for Various Devices

• Special Needles

• Service Agreement
